BH-HTBH-HKA
BH-HTBH-HKA-75


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

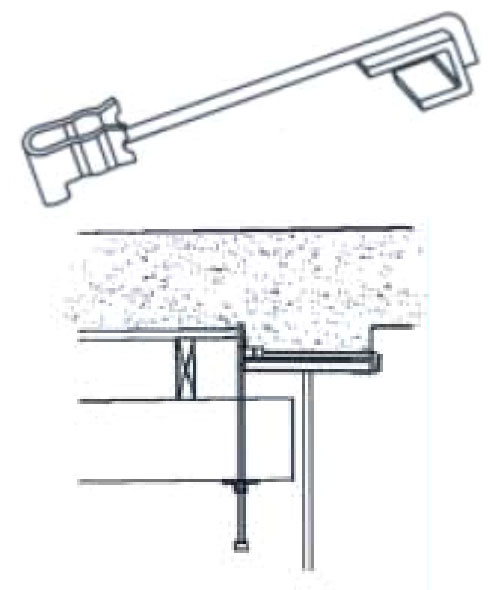

Ty-Back Ty-Down Hanger HTBH-HK is manufactured with a 1/2" diameter 90 end clip welded to one end of the hanger's strut. The other end of the strut has a reinforced, 180 wraparound configuration. The wraparound end is fabricated to slip over the flange of a steel bridge beam. This hanger is also available in a 3/4" system fabricated with ends to accommodate 3/4" rods, for higher loads.

OCM Part No. Diameter Safe Working Load lbs
BH-HTBH-HK 1/2" 6,000
BH-HTBH-HK-75 3/4" 10,000
Comments: SWL provides a safety factor of approximately 2 to 1. Please specify flange width and finish (PLAIN or HDG) when ordering.
