BH-HFRL
Type#1 15° - 15° Hanger


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

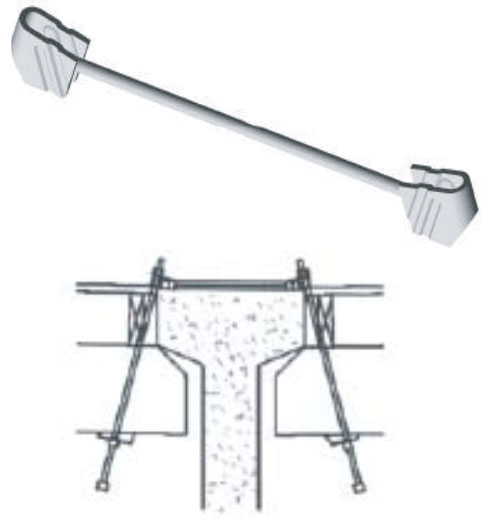

Hanger BH-HFRL are designed to have bolts at 15 from the vertical. Where 90 hanger provide support too close to the end of the ledgers, the HFRL support is away from the end of ledgers. HFRL Hanger consists of two 1/2" dia. 15° pressed steel HFRL end clips welded to a single wire strut. The hanger permits installation and adjustment from atop the deck. The 15° - 15° HFRL Hanger has a nominal 3/8" haunch relief.

OCM Part No. Diameter Safe Working Load lbs
BH-HFRL 1/2" 3,800
Comments: SWL provides a safety factor of approximately 2 to 1. Please specify flange width and finish (PLAIN or HDG) when ordering.

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
