BH60 Type #7 Pres - Steel Hanger


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

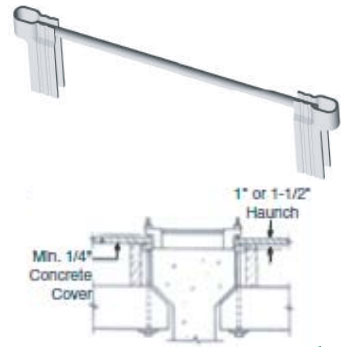

OCM BH60 Type #3 and Type #7 Pres - Steel Hanger is similar to the Type #1 Hanger from OCM, but they are for use when the deck has up to a 1" haunch (Type #3) or a 1 1/2" haunch (Type #7). They are also designed for 1/8" maximum clearance between the edge of the beam and the 1/2" coil bolts. Full bearing of the clips is required.

Features

  • SWL provides a Safety Factor of approximately 2:1
  • Please specify flange width and finish (Plain or HDG) when ordering
  • Can be adjusted from atop the deck
  • WARNING: Hangers must be equally loaded on both sides
OCM Part No. Diameter Haunch Height Safe Working Load lbs
BH60-7 1/2" 1 1/2" 2,375
