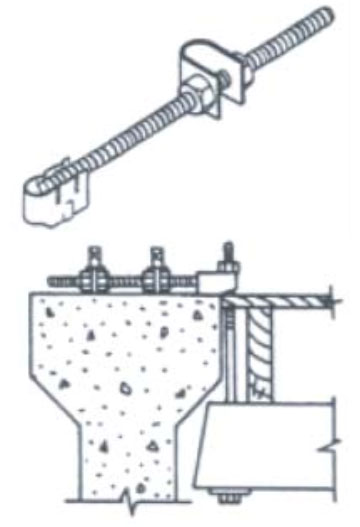

Adjustable Half Hanger BH-HFR-HAJ consists of a 1/2" Dia. 90 HFR end clip welded to a length of 1/2" coil threaded rod. Available with one or two stirrup clips for attachment to the bridge beam stirrups. The 90 BH-HFR-HAJ Adjustable Half Hanger is used to support interior deck formwork where one sided hangers are required but welding is not permitted. Standard unit is 9" long overall with one stirrup clip. Minimum overall length available is 6".

OCM Part No. Diameter Clips Safe Working Load lbs
BH-HFR-HAJ-1 1/2" 1 1,100
BH-HFR-HAJ-2 1/2" 2 3,000
Comments: SWL provides a safety factor of approximately 2 to 1.
