Turnbuckle


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
Turnbuckle provide alignment and supports vertical forms.

Features

  • Equipped with nail holes to accept 3/4" or 7/8" nail stake.
OCM Part No. Type Weight Per Pieces lbs
TBFB-FSF Straight Plate 7.8
TBFB-BF Bent Plate 8.1

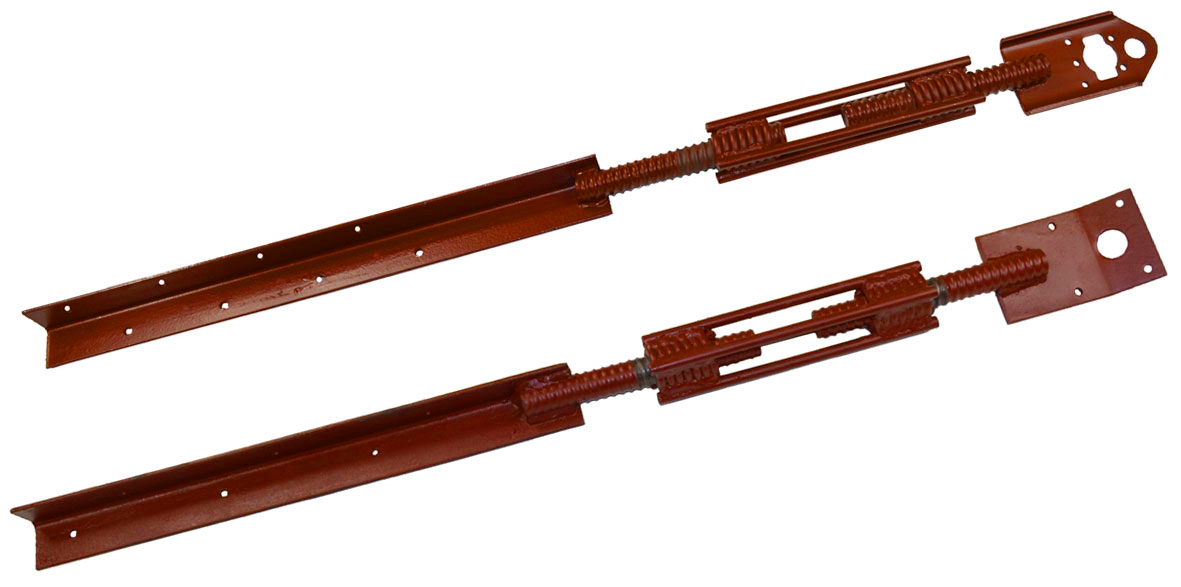

Turnbuckles are designed to align vertical formwork. The Turnbuckle - Bent Plate standard consists of a length of angle iron, a self-cleaning turnbuckle and a steel toe plate. The angle iron is equipped with nail holes allowing the Turnbuckle to be attached to a 2x4 or 2x6 to extend the reach. The Turnbuckle is fabricated with coil threads for quick and easy adjustments and the steel toe plate can accept a round steel stake, or to be nailed to a wood stake, or be inverted and nailed directly to a stud or wales. The Turnbuckle - Straight Plate is equipped with a spade-type toe plate designed for use with modular forms and wedge bolts. The safe working load for the Form Aligner is determined by the method of attachment and the extension lumber used.
