OCM Loop Ties


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
OCM Loop Ties are designed to provide dependable tying systems for OCM Steel Plywood Forms. OCM Loop Ties are manufactured from high strength steel designed to provide a reliable method for securing formwork.

Features

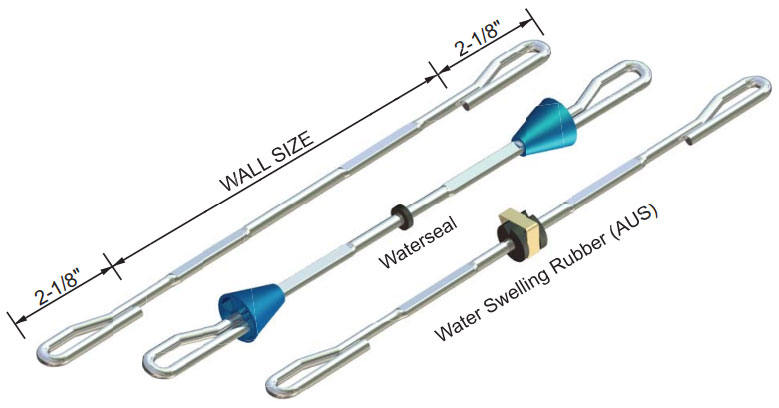

  • Available in 4" to 120" wall size. Longer sizes available on special order.
  • Available with neoprene washer placed near the center of the tie. The water-resistant washer prohibits water seepage along the tie.
  • Available with Plastic Cones in 1" and 1-1/2" Breakback.
  OCM Part No. Wall Size Weight per pcs
lbs
Carton Qty Safe Working Load
lbf
Heavy
2-1/8" Ends
LTHD-06 6 0.21 100 3000
LTHD-08 8 0.23
LTHD-09 9 0.24
LTHD-10 10 0.25
LTHD-12 12 0.28
LTHD-14 14 0.31
LTHD-15 15 0.32
LTHD-16 16 0.34
LTHD-18 18 0.36
LTHD-19 19 0.38
LTHD-20 20 0.39
LTHD-24 24 0.44
LTHD-26 26 0.46
LTHD-28 28 0.48
LTHD-30 30 0.49
LTHD-32 32 0.54
LTHD-34 34 0.56
LTHD-36 36 0.58
LTHD-40 40 0.65
LTHD-42 42 0.68
LTHD-48 48 0.78
LTHD-54 54 0.88
LTHD-60 60 0.98

Heavy
2-1/8" Ends
Waterseal

LTHD-08WS 8 0.23 100 3000
LTHD-10WS 10 0.25
LTHD-12WS 12 0.28
LTHD-14WS 14 0.31
LTHD-16WS 16 0.34
Comments: -SWL provides a safety factor of apporoximately 2 to 1.
