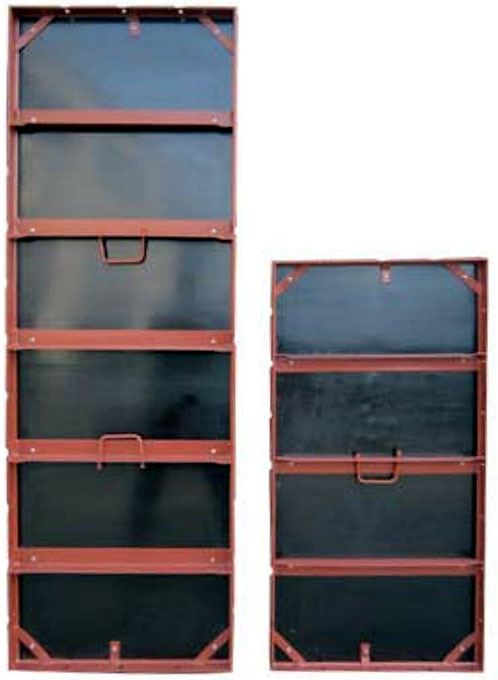

Steel Ply Panels and Fillers


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Features

  • Complete line of panel heights, filler widths, and all types of corners available to make ordering and maintaining your current fleet easier.
  • High quality powder coating increases durability, weatherability and keeps forms looking good for years to come.
  • Comes Standard with upgraded Finn Form solid Birch with 120/120 perfor-mance that provides uncommon strength with a smooth surface. It is easy to strip and will not leave grain imprinting. Fin Form is bonded with a phenolic resin adhesive which is water and boil proof. All edges are factory sawn and sealed with a special styrene acrylic sealer. Classic HDO with 100/30 is also available upon request and is the standard insert offered by our competition.
  • Cross members are standard 2" x 2" and are located every 12" making them ideal for residential/commercial foundations and rental yards.
  • Rivets are 1/4" heavy duty, solid machine installed made from 1100F aluminum to increase longevity.
  • Welds are quality controlled by highly trained craftsmen, and frames are manufactured to precise dimensions so they are easily compatible with other Handset Steel/Plywood form systems.
  • Dado slots located at 12" on center and wedge bolt accessory slots are located at 6" on center.
  • Conveniently located handles make set up, stripping and handling easier.
  • Maximum pour pressure of 1,000 lbs per square foot.
  • With proper care contractors can expect that forms will be able to be reused up to 200 times before plywood needs to be replaced.
  • Compatible with all other industry standard modular handset systems.
  • All sizes of heavy duty loop ties, x-flat ties, wedge bolts, and accessories to offer the complete system.
  • 9 FT and 10 FT available upon request.

Sizes

8 FT

6 FT

5 FT

4FT

3 FT

OCM
Part No.

Weight
lbs

OCM
Part No.

Weight
lbs

OCM
Part No.

Weight
lbs

OCM
Part No.

Weight
lbs

OCM
Part No.

Weight
lbs

24" Panels

SF96X24

75

SF72X24

58

SF60X24

48

SF48X24

40

SF36X24

30

22" Fillers

SF96X22

70

SF72X22

54

SF60X22

46

SF48X22

38

SF36X22

29

20" Fillers

SF96X20

66

SF72X20

50

SF60X20

42

SF48X20

35

SF36X20

27

18" Fillers

SF96X18

63

SF72X18

47

SF60X18

39

SF48X18

32

SF36X18

25

16" Fillers

SF96X16

59

SF72X16

44

SF60X16

37

SF48X16

30

SF36X16

24

14" Fillers

SF96X14

54

SF72X14

40

SF60X14

35

SF48X14

28

SF36X14

22

12" Fillers

SF96X12

50

SF72X12

36

SF60X12

33

SF48X12

26

SF36X12

20

10" Fillers

SF96X10

46

SF72X10

34

SF60X10

30

SF48X10

24

SF36X10

19

8" Fillers

SF96X8

42

SF72X8

32

SF60X8

26

SF48X8

22

SF36X8

17

6" Fillers

SF96X6

39

SF72X6

28

SF60X6

25

SF48X6

19

SF36X6

15

5" Fillers

SF96X5

37

SF72X5

27

SF60X5

23

SF48X5

18

SF36X5

14

4" Fillers

SF96X4

34

SF72X4

25

SF60X4

21

SF48X4

17

SF36X4

13

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.

OCM, Inc.

1120 Peterson Road, Grayslake, IL 60030
Toll Free: 866-457-5710 • Phone: 847-462-4258 • FAX: 847-462-4259
