Outside Corners

Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

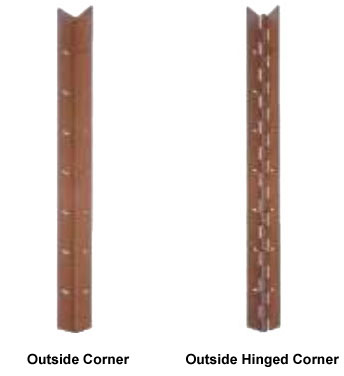

  • Outside Corners are used to form 90° angles.
  • Dadoes and slots are placed every 12" O.C. for tie and connection hardware.
  • Outside Hinged Corners are used to form outside corners from 135° down to 5° angle.
  • Outside Hinged Corners are typically used opposite of Inside Hinged Corners.
  • 9FT. available upon request.
Outside Corner
OCM Part No. Description Weight lbs Box Qty
OC36F OUTSIDE CORNER - 36" (3') - STANDARD 9.70 1
OC48F OUTSIDE CORNER - 48" (4') - STANDARD 12.94 1
OC60F OUTSIDE CORNER - 60" (5') - STANDARD 16.17 1
OC72F OUTSIDE CORNER - 72" (6') - STANDARD 19.40 1
OC96F OUTSIDE CORNER - 96" (8') - STANDARD 25.87 1
OC108F OUTSIDE CORNER - 108" (9') - STANDARD 29.11 1


Outside Hinged Corner
OCM Part No. Description Weight lbs Box Qty
OC36H OUTSIDE CORNER - 36" (3') - HINGED 12.54 1
OC48H OUTSIDE CORNER - 48" (4') - HINGED 16.72 1
OC60H OUTSIDE CORNER - 60" (5') - HINGED 20.90 1
OC72H OUTSIDE CORNER - 72" (6') - HINGED 24.86 1
OC96H OUTSIDE CORNER - 96" (8') - HINGED 33.22 1
OC108H OUTSIDE CORNER - 108" (9') - HINGED 37.40 1

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
