Threaded Rebar Coupler Smooth with Flange

Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

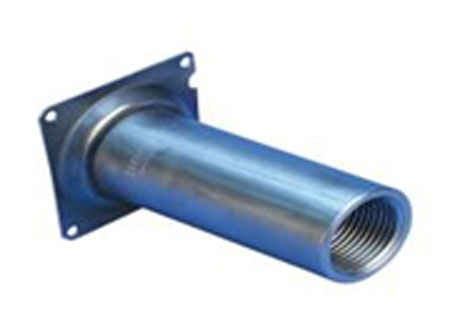

OCM, Inc's Threaded Rebar Coupler Smooth With Flange is used to connect rebar. While being fastened to formwork with either nails or screws.


  • Available with or without Nailing Flange.
Rebar Coupler Size Thread Size Weight lbs. Coupler Length Coupler Outside Diameter Flange Size Ultimate Load lbs.
#4 1/2 - 13 NC 0.24 1-7/8" 7/8" 2" X 2" 18,000
#5 5/8 - 11 NC 0.34 2-1/8" 1" 2" X 2" 27,900
#6 3/4 - 10 NC 0.41 2-1/4" 1-1/8" 2" X 2" 39,600
#7 7/8 -9 NC 0.57 2-5/8" 1-1/4" 2" X 2" 54,000
#8 1 - 8 NC 1.08 3-1/4" 1-1/2" 2" X 2" 71,100
#9 1 1/8 - 7 NC 1.39 3-3/4" 1-5/8" 2" X 2" 90,000
#10 1 1/4 - 7 NC 2.61 4-1/4" 2" 2" X 2" 114,300
#11 1 3/8 - 6 NC 2.86 4-3/4" 2" 2" X 2" 140,400
Comments: Setting Bars and Splicing Bars are available in all lengths and bent or straight.
