EZ Key Splice Strip


Technical Product Data Sheet

Description

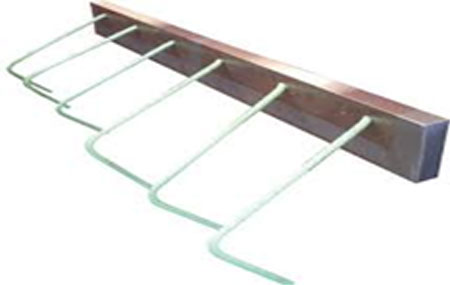

The OCM EZ Key Splice Strip System is a two piece system of pre-assembled rebar and box keyway unit. Box is made in two halfs from plain steel or galvanized sheet metal per customer requirement. Typical dimensions of box are: 1.5” deep; 2.5”, 3.5”, 6” or 8” wide by 48” long. Those are standard sizes but product can be fabricated in almost any shape required. The two part box is designed so back portion of box remains, front portion removes allowing access to the bend out portion of rebar. The box itself and both ends are taped together. Simply nail box to form installation.

Standard Sizes
Hook Rebar Single Row 12” C.C. Width: 3-1/2” Thickness: 1-1/2”
Straight Rebar Single Row 12” C.C. Width: 3-1/2” Thickness: 1-1/2”
Loop Rebar Single Row 12” C.C. Width: 6-1/2” Thickness: 1-1/2”
Comments: Please contact OCM directly for Sizing, Technical Data, or Takeoffs of your project.

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.

OCM, Inc.

1215 Henri Drive, Wauconda, IL 60084
Toll Free: 866-457-5710 • Phone: 847-462-4258 • FAX: 847-462-4259
