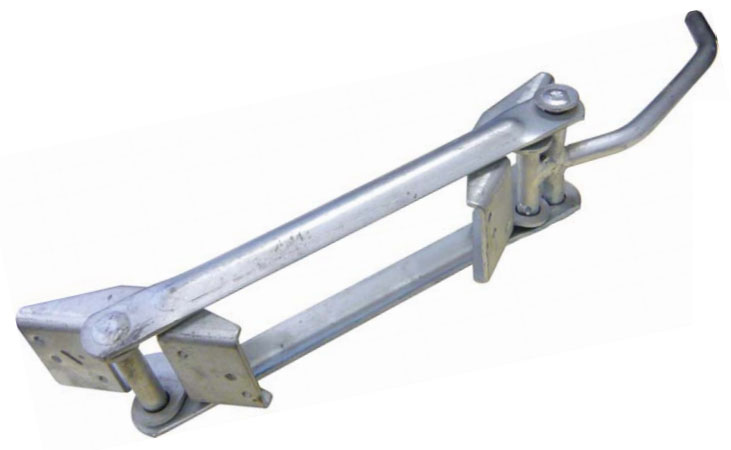

Snap Tie Corner Lock

Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.


  1. Set one waler flush at the corner and let the other extend past the flush one. Slide the Corner Lock into place with the handle perpendicular to the waler.
  2. Nail the Corner Lock in place and rotate the handle toward the waler until a secure tight fit is achieved.


  • Used at outside corners to secure the 2X4 walers.
  • Eliminates costly overlapping and blocking of the walers.
  • Nail holes are strategically placed on the Corner Lock for secure attachment.
  • Ribbed or knurled grippers on the underside provide a positive non-slip action on the side of the 2X4 walers.
  • Cam action of the locking handle draws the walers securely together.
  • No special tools are used for installation or stripping.
OCM Part No. Weight per pcs lbs
OCM-JCL 1.78
