BH68 Type #4AB Pres - Steel Hanger

Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

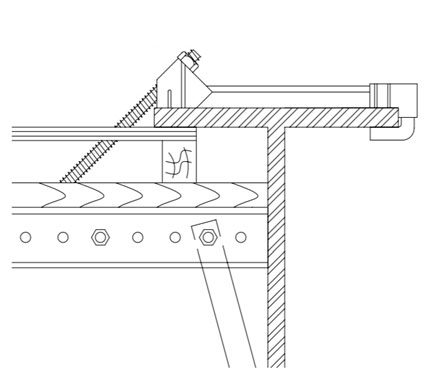

OCM BH60 Type #4AB is manufactured with a 1/2" diameter heavy End Clip welded to one end of the hangers strut and a 90 degree interlock End Clip on the other end. The interlocking end has a reinforced, 180 degree wraparound configuration made to slip over the flange of the steel bridge beam. It is ideal for use when stay-in-place metal decking is used on the interior bays of the bridge deck.


  • SWL provides a Safety Factor of approximately 2:1
  • Please specify flange width, flange thickness, and finish (Plain or HDG) when ordering
  • This hanger is also available in a 3/4" system that is fabricated with ends to accommodate 3/4" rods for higher loads upon request
OCM Part No. Diameter Safe Working Load lbs
BH68-4AB 1/2" 6,000
