Long Adjustable Coil Bolts (Deck Bolts)

Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

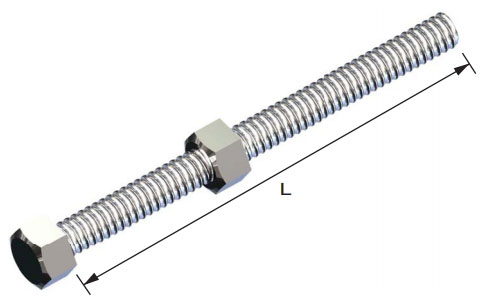

OCM Long Adjustable Coil Bolts are made from high strength steel come with a loose running coil nut installed on the bolt for easy use on the jobsite. OCM Long Adjustable Coil Bolts are commonly used in bridge deck forming applications to attach the overhang bracket to the bridge hanger on the bridge beam. Care must be taken to tighten the loose running nut up against the bottom of the overhang bracket to ensure proper use.


  • Loose running nut installed on the bolt for faster set up and stripping operation.
  • Bolts may be furnished with either welded heads or forged heads to match the profile of the ½” loose coil nut.
  • Available in several different lengths.
  • Coil thread is self-cleaning and ideal for dirty jobsites or use in other concrete formwork.
OCM Part No. D Size L Length AC Across Flats Weight/pc lbs Safe Working Load lbs
50A1200CBH0P 1/2" 12" 7/8" .675 9,000
50A1600CBH0P 1/2" 16" 7/8" .85 9,000
50A1800CBH0P 1/2" 18" 7/8" .88 9,000
50A2400CBH0P 1/2" 24" 7/8" 1.19 9,000
50A3000CBH0P 1/2" 30" 7/8" 1.44 9,000
75S1800CBH0P 3/4" 18" 1.25" 2.05 18,000
75S2400CBH0P 3/4" 24" 1.25" 2.63 18,000
Comments: Additional sizes and lengths available. SWL provides a safety factor of approximately 2 to 1.
