BH60 Type #7A Pres - Steel Angle Hanger


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

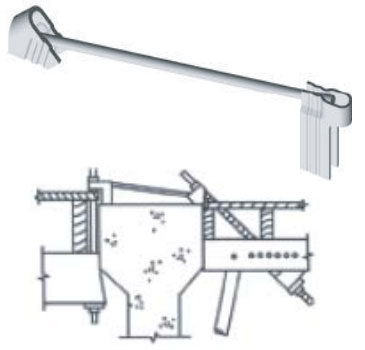

OCM BH60 Type #7A Exterior Hangers are used to form fascia overhangs on projects having up to 1 1/2" haunch conditions. The hanger is fabricated with a 1/2" diameter End Clip and a 1/2" diameter 45 degree End Clip welded onto 0.375" diameter wire and is used to support fascia overhang formwork. This hanger allows for installation and adjustment from the to of the formwork.

Features

  • SWL provides a Safety Factor of approximately 2:1
  • Please specify flange width, haunch height, and finish (Plain or HDG) when ordering
  • BH62-6A, and BH60-2A are available upon request when a higher haunch on the interior side or if a 1" haunch relief is required on the interior side
  • WARNING: Only to be used to support Overhang Brackets when weight of finishing/conveyor machine is supported directly on exterior beams and hangers must be equally loaded on both sides
OCM Part No. Dia Haunch Height Safe Working Load lbs
BH60-7A-1 1/2" 1" 2,375
BH60-7A-1.5 1/2" 1 1/2" 3,000

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.

OCM, Inc.

1120 Peterson Road, Grayslake, IL 60030
Toll Free: 866-457-5710 • Phone: 847-462-4258 • FAX: 847-462-4259
