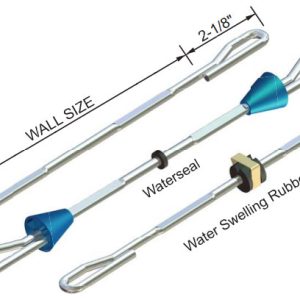

OCM Loop Ties

Description:

OCM Loop Ties are designed to provide dependable tying systems for OCM Steel Plywood Forms. OCM Loop Ties are manufactured from high strength steel designed to provide a reliable method for securing formwork.

Features:

Available in 4" to 120" wall size. Longer sizes available on special order.
Available with neoprene washer placed near the center of the tie. The water-resistant washer prohibits water seepage along the tie.
Available with Plastic Cones in 1" and 1-1/2" Breakback.

OCM Part Number	Description	Wall Size (in)	Weight Per Piece (lbs)	Carton Quantity	Safe Working Load (lbs)	Get a Quote
LTHD-30	Heavy Duty, 2-1/8" Ends	30	0.49	100	3,000	Quote
LTHD-16WS	Heavy Duty, 2-1/8" Ends, with Waterseal	16	0.34	100	3,000	Quote
LTHD-14WS	Heavy Duty, 2-1/8" Ends, with Waterseal	14	0.31	100	3,000	Quote
LTHD-12WS	Heavy Duty, 2-1/8" Ends, with Waterseal	12	0.28	100	3,000	Quote
LTHD-10WS	Heavy Duty, 2-1/8" Ends, with Waterseal	10	0.25	100	3,000	Quote
LTHD-08WS	Heavy Duty, 2-1/8" Ends, with Waterseal	8	0.23	100	3,000	Quote
LTHD-60	Heavy Duty, 2-1/8" Ends	60	0.98	100	3,000	Quote
LTHD-54	Heavy Duty, 2-1/8" Ends	54	0.88	100	3,000	Quote
LTHD-48	Heavy Duty, 2-1/8" Ends	48	0.78	100	3,000	Quote
LTHD-42	Heavy Duty, 2-1/8" Ends	42	0.68	100	3,000	Quote
LTHD-40	Heavy Duty, 2-1/8" Ends	40	0.65	100	3,000	Quote
LTHD-36	Heavy Duty, 2-1/8" Ends	36	0.58	100	3,000	Quote
LTHD-34	Heavy Duty, 2-1/8" Ends	34	0.56	100	3,000	Quote
LTHD-32	Heavy Duty, 2-1/8" Ends	32	0.54	100	3,000	Quote
LTHD-06	Heavy Duty, 2-1/8" Ends	6	0.21	100	3,000	Quote
LTHD-28	Heavy Duty, 2-1/8" Ends	28	0.48	100	3,000	Quote
LTHD-26	Heavy Duty, 2-1/8" Ends	26	0.46	100	3,000	Quote
LTHD-24	Heavy Duty, 2-1/8" Ends	24	0.44	100	3,000	Quote
LTHD-20	Heavy Duty, 2-1/8" Ends	20	0.39	100	3,000	Quote
LTHD-19	Heavy Duty, 2-1/8" Ends	19	0.38	100	3,000	Quote
LTHD-18	Heavy Duty, 2-1/8" Ends	18	0.36	100	3,000	Quote
LTHD-16	Heavy Duty, 2-1/8" Ends	16	0.34	100	3,000	Quote
LTHD-15	Heavy Duty, 2-1/8" Ends	15	0.32	100	3,000	Quote
LTHD-14	Heavy Duty, 2-1/8" Ends	14	0.31	100	3,000	Quote
LTHD-12	Heavy Duty, 2-1/8" Ends	12	0.28	100	3,000	Quote
LTHD-10	Heavy Duty, 2-1/8" Ends	10	0.25	100	3,000	Quote
LTHD-09	Heavy Duty, 2-1/8" Ends	9	0.24	100	3,000	Quote
LTHD-08	Heavy Duty, 2-1/8" Ends	8	0.23	100	3,000	Quote

Additional Notes: SWL provides a safety factor of approximately 2 to 1.
