Coil Thread Drop In Anchors
Description:

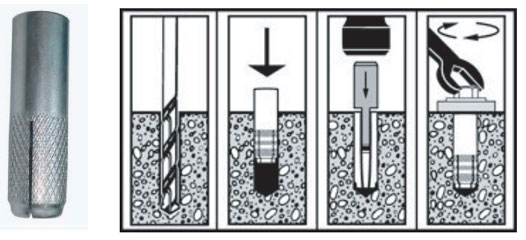

OCM Coil Thread Drop In Anchors are internally threaded Drop In Expansion Anchors used with either 1/2" or 3/4" Diameter Coil Rod, and are set in place by the use of the Setting Tool after the anchor is placed into the properly sized pre-drilled hole.
Features:
- Made from Carbon Steel
- Makes One-Sided Forming easier
- Coil Rod can be set into existing concrete quickly and easily
Filters Sort results
Reset Apply
OCM Part Number | D - Size (in) | Drill Bit Size Must Use (in) | Box Quantity | Weight Per Piece (lbs) | SWL (For 2000 psi Concrete) (lbs) | Get a Quote |
|---|---|---|---|---|---|---|
1/2" | 5/8" | 50 | 0.12 | 1,025 | ||
1/2" | 1" | 1 | 0.4 | 1,025 | ||
3/4" | 1" | 25 | 0.5 | 2,145 | ||
3/4" | 1" | 1 | 0.4 | 1,025 |
Additional Notes: SWL provides a safety factor of approximately 2 to 1.
