Smooth Dowels


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

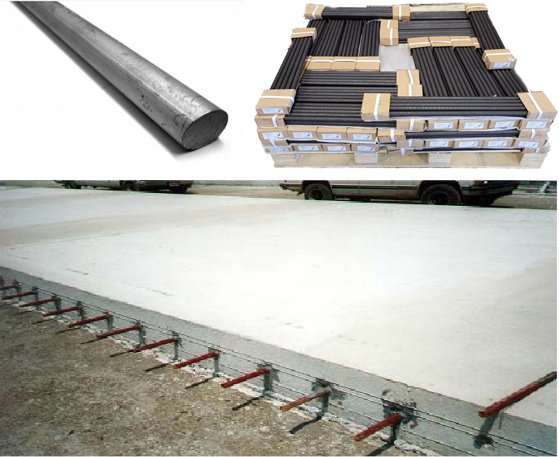

Smooth dowels are placed in concrete slabs to enable proper load transfer across the joint, maintain vertical alignment of the slabs, and allow slab movements perpendicular to the joint.

Features

  • 1/2”, 5/8”, and 3/4” smooth dowels meet ASTM A36 Steel & ACI 302.1 R-04 3.2.7
  • 1”, 1-1/4”, and 1-1/2” smooth dowels meet ASTM A 615 Grade 60 Steel & ACI 302.1 R-04 3.2.7
  • Saw cut cut ends for ease of joint movement.
  • Custom diameters, lengths, & epoxy coated dowels available.
OCM Part No. Size Weight lbs Qty per Bundle Qty per Skid
SD50X12 1/2" X 12" 0.67 10 4,800
SD50X18 1/2" X 18" 1 10 3,120
SD50X24 1/2" X 24" 1.34 10 2,400
SD625X18 5/8" X 18" 2.26 10 1,000
SD625X24 5/8" X 24" 3.01 10 600
SD75X18 3/4" X 18" 2.26 10 1,400
SD75X24 3/4" X 24" 3.01 10 1,000
SD100X18 1" X 18" 4 10 800
SD100X24 1" X 24" 5.34 10 600
SD125X18 1-1/4" X 18" 6.7 10 500

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
