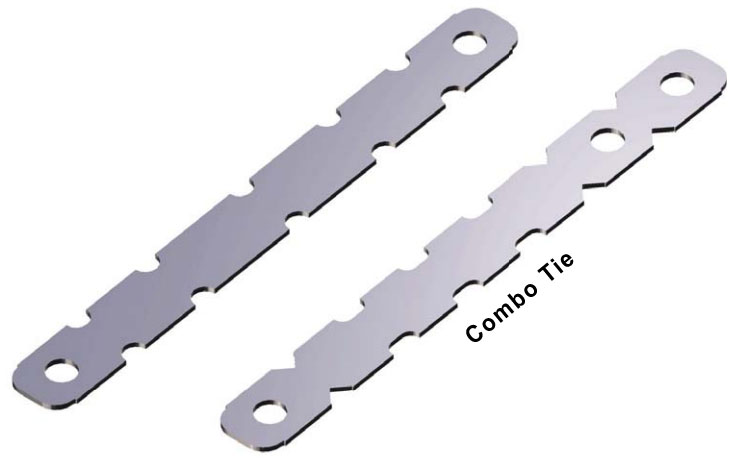

Aluminum Form Tie


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

OCM Part No. Wall Thickness Size Type End Safe Working Load lbs
AFT06FRETQN 6" Full Round 3,600
AFT08FRETQN 8"
AFT09FRETQN 9"
AFT10FRETQN 10"
AFT12FRETQN 12"
AFT14FRETQN 14"
AFT16FRETQN 16"
AFT18FRETQN 18"
AFT20FRETQN 20"
AFT22FRETQN 22"
AFT24FRETQN 24"
AFT06NRETQN 6" Nominal
AFT08NRETQN 8"
AFT09NRETQN 9"
AFT10NRETQN 10"
AFT12NRETQN 12"
AFT14NRETQN 14"
AFT16NRETQN 16"
AFT18NRETQN 18"
AFT20NRETQN 20"
AFT22NRETQN 22"
AFT24NRETQN 24"
AFT0810NRETQN 8"-10" (Combo)

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
