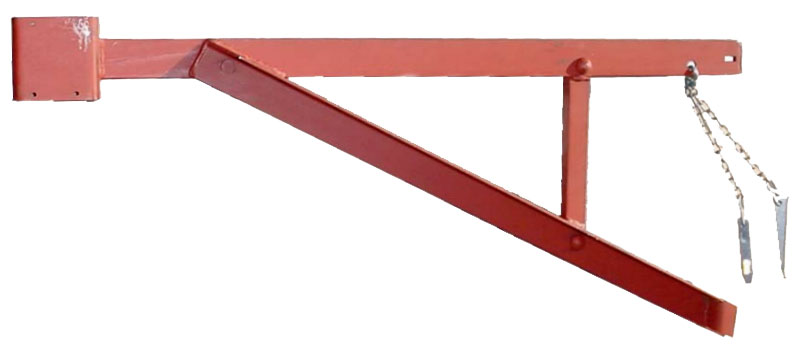

Hand-Set Scaffolding Bracket


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

OCM Part No. Weight
SBRACT-HSET 13.9 lbs


Assembly Instructions:

  1. Place a wedge bolt through the slot in the scaffold bracket and adjoining side rails of the panels.
  2. Lock the wedge bolt with the s-wedge that is cabled to the bracket itself.
  3. Make sure the clevis at the bottom of the bracket straddles the adjoining side rails of the panels for proper bearing and alignment.

Safety Information:

  • The hand-set scaffold bracket has an allowable load of 500 lbs at a 4:1 safety factor.
  • Spacing must not exceed 8 feet per applicable OSHA standards.
  • Product must be used according to all applicable governmental standards.

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.

OCM, Inc.

1120 Peterson Road, Grayslake, IL 60030
Toll Free: 866-457-5710 • Phone: 847-462-4258 • FAX: 847-462-4259
