Speed Lock Ties


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

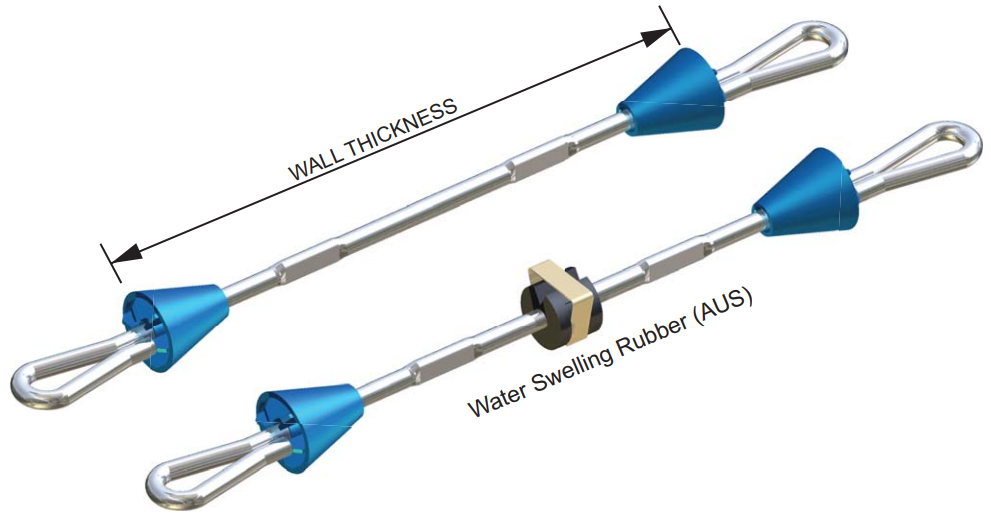

OCM SPEED LOCK TIES are used to build wood forming using standard ¾” plyform with 2x4’s for the walers and stiff backs (strong backs).

Features

  • The ties feature a self-centering cone that will adapt to imperfect alignment and dimensional variances in the lumber without affecting the break back operation.
  • Available in standard sizes and made to order special sizes.
  • 2250# safe working load (2:1 safety factor) adjust tie pattern/pour rate according to specific job requirements.
  • 13/16th Hole required.
  • Uses less lumber and requires less nailing than other typical wood-based hand-set systems.
  • Adaptable to most other types of wall forming systems.
  • Great for radius forming.
OCM Part No. Wall Size Weight per each lbs Safe Working Load lbs
SLT-06B 6" 0.21 2,250
SLT-07B 7" 0.22 2,250
SLT-08B 8" 0.23 2,250
SLT-09B 9" 0.24 2,250
SLT-10B 10" 0.25 2,250
SLT-12B 12" 0.28 2,250
SLT-14B 14" 0.31 2,250
SLT-16B 16" 0.34 2,250
SLT-18B 18" 0.36 2,250
SLT-20B 20" 0.38 2,250
SLT-22B 22" 0.41 2,250
SLT-24B 24" 0.44 2,250
SLT-30B 30" 0.48 2,250
SLT-36B 36" 0.53 2,250
SLT-42B 42" 0.62 2,250
SLT-48B 48" 0.72 2,250
Comments: SWL provides a safety factor of approximately 2 to 1. Special lengths and Stainless Steel also available.
