Tilt Wall Form Bracket

Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

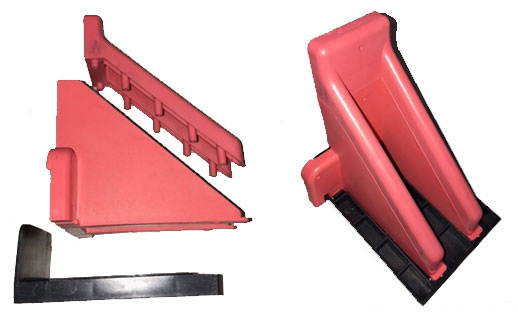

The Tilt Wall Form Bracket is a polymer composite bracket designed to support tilt-up form boards and act as a kicker bracket on bridge decks for screed rail forming.


  • Patented design includes a 2" insert that snaps into the 5" bracket to create a 7" bracket.
  • No need for dual inventories of 5" and 7" brackets, just buy the 2" insert as needed to convert the 5" to the 7".
  • Dual spine design provides added strength and durability.
  • Shoe comes with adhesive strip for superior hold on the job.
OCM Part No. Description Box Qty
TWFB-05 Polymer Composite 5" Bracket only, shoe sold separately 50
TWFB-07EXT Polymer Composite Extension 2", used with TWFB-05 to make 7" bracket 100
TWFB-SHOE One time use Polymer Composite Shoe for TWFB-05, adhesive pad, w/ nail holes 100

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
