Loop Ferrule Insert FLI-42


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
OCM Loop Ferrule inserts are commonly used to make structural connections in concrete construction. Common uses are hanging pipes and/or MEP equipment. Refer to the table for bolt diameters and dimensions.

Features

  • Available in Plain, Electro Galv finishes.

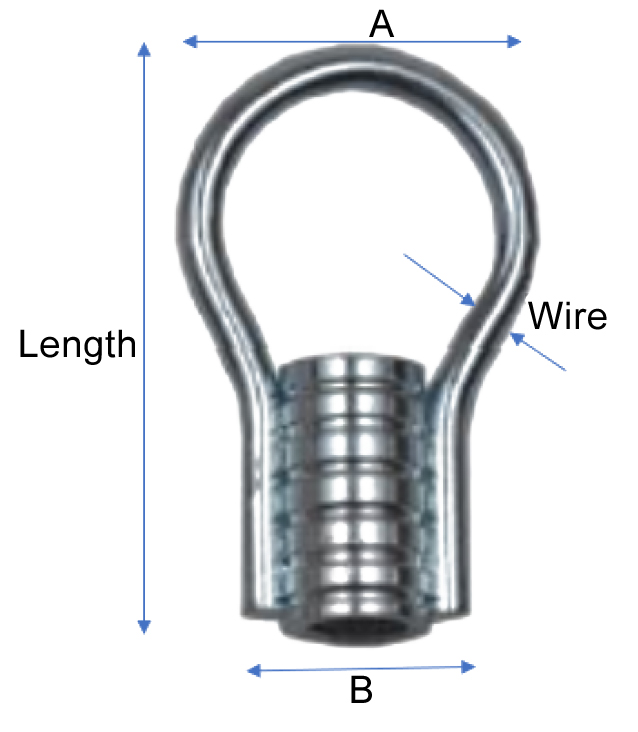

OCM Part No. Bolt Diameter Length A B Wire Dia Min Edge Min Corner Tension* Shear*
UNC Thread D Distance (lbs) (lbs)
LFI375X275P 3/8-16 2-3/4" 1-1/4" 1/2" .256" 10" 15" 2000 2000
LFI50X275P 1/2-13 2-3/4" 1-3/8" 9/16" .256" 7" 10" 2000 2000
LFI625X350P 5/8-11 3-1/2" 1-5/8" 13/16" .256" 8" 8" 2000 2000
LFI75X350P 3/4-10 3-1/2" 1-5/8" 13/16" .327" 8" 8" 2000 2000
LFI975X600P 7/8-9 6" 1-5/8" 1-5/16" .375" 10" 15" 5300 5300
LFI100X600P 1-8 6" 1-5/8" 1-5/16" .375" 10" 15" 5300 5300

Safe Working Load is based on 3,000 psi concrete and 1/2" insert setback from face of concrete.
Minimum Inserts Spacing of inserts is 2x Minimum Corner Distance.

Comments: 3:1 Safe Working Load
