Thin Slab Coil Insert


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

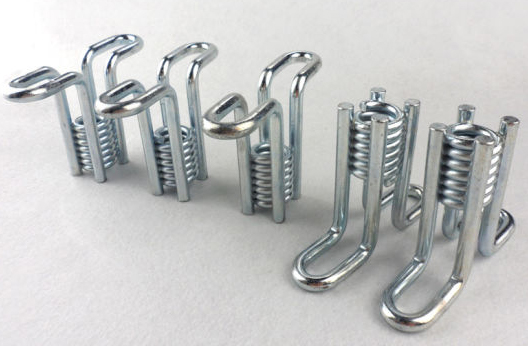

The Thin Slab Coil Insert is used where concrete thickness is limited and offers better tension loads than other thin slab inserts.

Features

  • Available in 1/2", 3/4 and 1" diameters.
  • Available in Plain, Electro Zinc Plated or Hot Dip Galvanized Finishes.
Coil Bolt Dia. Height Length D Wire Dia. Min. Edge Distance Min. Corner Tension (lbs.) Shear (lbs.)
1/2" 1-3/4" 4-11/16" .256" 6" 6" 1,520 1,090
3/4" 3-1/2" 5-1/4" .327" 9" 9" 3,570 2,600
1" 2-5/16" 5-11/16" .327" 8" 8" 2,460 1,970
1" 4-1/2" 5-11/16" .327" 12" 12" 5,280 4,000


Safe Work Loads reflect 4:1 safety factor.
Min 3,000 psi concrete strength.

Comments: 1/2" diameter not recommended for lifting or handling of precast elements.
