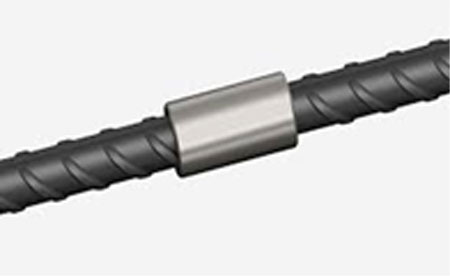

OCM Inc's Threaded Rebar Coupler Smooth is used to connect rebar. Containing internal tapered female threads.
|Rebar Coupler Size||Thread Size||Weight lbs.||Coupler Length||Coupler Outside Diameter||Ultimate Load lbs.|
|#4||1/2 - 13 NC||0.24||1-7/8"||7/8"||18,000|
|#5||5/8 - 11 NC||0.34||2-1/8"||1"||27,900|
|#6||3/4 - 10 NC||0.41||2-1/4"||1-1/8"||39,600|
|#7||7/8 -9 NC||0.57||2-5/8"||1-1/4"||54,000|
|#8||1 - 8 NC||1.08||3-1/4"||1-1/2"||71,100|
|#9||1 1/8 - 7 NC||1.39||3-3/4"||1-5/8"||90,000|
|#10||1 1/4 - 7 NC||2.61||4-1/4"||2"||114,300|
|#11||1 3/8 - 6 NC||2.86||4-3/4"||2"||140,400|
