Coil Eye Bolts


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
OCM Coil Eye Bolts are cast from ductile iron that meets ASTM Standard A-536 Grade 80-55-06. The Coil Eye Bolt is simply a Coil Eye Nut, with a pre-sized piece of Coil Rod welded into it. These Coil Eye Bolts are designed to only be used in straight tensile loading only. Pulling or Lifting at an angle will result in greatly reduced Safe Working Loads and is not recommended.

Features

  • Can be used with preset Coil Thread Inserts to left and move concrete pieces
  • Can be made into any length bolt by using cut pieces of Coil Rod, must be done by certified welder
  • Made from Ductile Iron

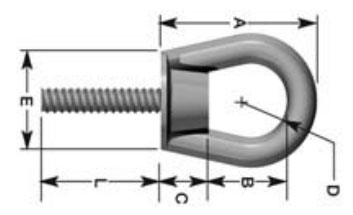

OCM Part No. Bolt Diameter in. Safe Working Load A in. B in. C in. D in. E in.
50CEB 1/2 2,700 3 1/4 1 5/8 1 3/4 2
75CEB 3/4 3,600 3 1/2 1 3/4 1 3/4 2
100CEB 1 7,200 5 2 3/4 1 1/4 1 3
Comments: SWL provides a safety factor of approximately 5 to 1.

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
