Coil Eye Nuts


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
OCM Coil Eye Nuts are made from Ductile Iron and are provided with internal Coil Thread for sizes up to 1 1/2". The OCM Eye Nut is cast from ductile iron that meets ASTM Standard A-536 Grade 80-55-06. The eye nut is cast with coil threads and is intended to be used with Coil Rod that has been cut to the proper length. These Coil Eye Nuts are designed to only be used in straight tensile loading only. Pulling or Lifting at an angle will result in greatly reduced Safe Working Loads and is not recommended.

Features

  • Can be used with preset Coil Thread Inserts to left and move concrete pieces
  • Can be made into any length bolt by using cut pieces of Coil Rod, must be done by certified welder
  • Made from Ductile Iron

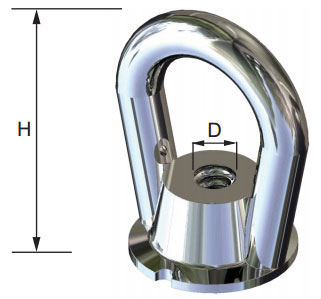

OCM Part No. D Size H Height Weight per pcs lbs Safe Working Load lbs
50CEN 1/2" 3-1/4" 0.7 2,700
75CEN 3/4" 3-1/2" 1.2 3,600
100CEN 1" 5" 2.9 7,200
125CEN 1-1/4" 6-1/4" 6 10,800
Comments: SWL provides a safety factor of apporoximately 2 to 1.
