Erection Anchor Ring Clutch

Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

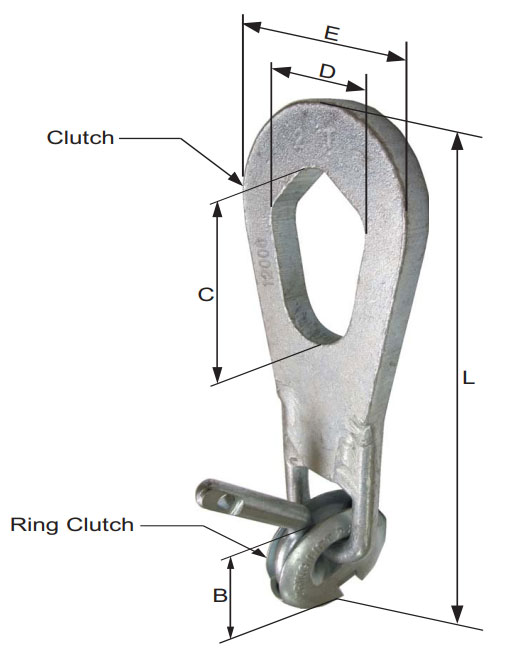

Erection Anchor Ring Clutch consists of a bail, clutch and curved bolt handle. It is used to lift precast concrete panels.


  • Durable and easy to use.
OCM Part No. Ring Clutch System (Tons) Clutch ID Allowable Load Ramge Total Length L (in.) B (in.) C (in.) D (in.) E (in.) Weight Each (lb)
OCMFLRC-2T 2T 2-2.5T 10-15/16 3-1/8  3-1/16 2-5/32 3-3/4 4.60
OCMFLRC-4T 4T 4-5T 12-31/32 4-1/16 3-15/16 2-15/32 4-19/32 9.25
OCMFLRC-8T 8T 8-10T 17-3/8 5-7/8 5-1/4 3-3/8 6-11/32 22.80
Comments: SWL provides a safety factor of approximately 5 to 1.
