Combo Ties


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

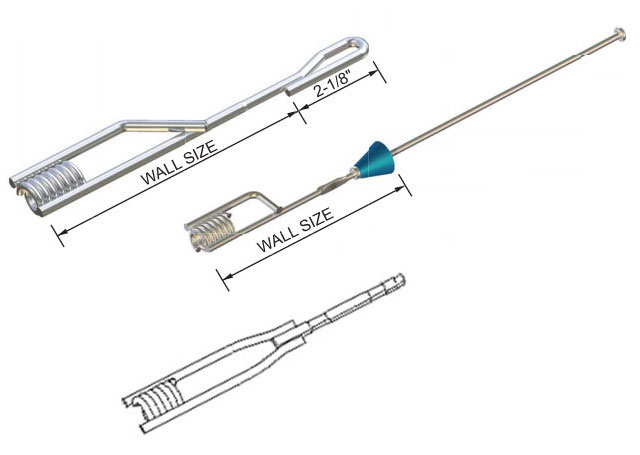

OCM Combo Ties are manufactured with either a Standard Loop Tie or Snap Tie on one end and a 1/2" Coil Tie on the other end. They can be used in Steel Frame Form or Snap Tie one sided or blind side forming applications.

Features

  • Standard sizes of 4", 6", and 8" are in stock, but can be used with field cut lengths of Coil Rod to form different size walls
  • They provide good Safe Working Loads
  • Special sizes and lengths can be fabricated upon request
 Name OCM Part No. Wall Size Weight per pcs lbs Carton Qty Safe Working Load lbs
HD Loop Tie and 1/2" Coil Tie COMBO-50C/HDL-4 4 0.25 100 3,000
HD Loop Tie and 1/2" Coil Tie COMBO-50C/HDL-6 6 0.27 100 3,000
HD Loop Tie and 1/2" Coil Tie COMBO-50C/HDL-8 8 0.29 100 3,000
Snap Tie and 1/2" Coil Tie COMBO-50C/LEST 6 0.3 100 2,250
Aluminum and Coil Tie COMBO-50C/AFT 6 0.35 100 3,000
Resi and Coil Tie COMBO-50C/RT-6 6 0.35 100 2.250

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
