2 Strut Full Strut Coil Tie 1/2"

Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

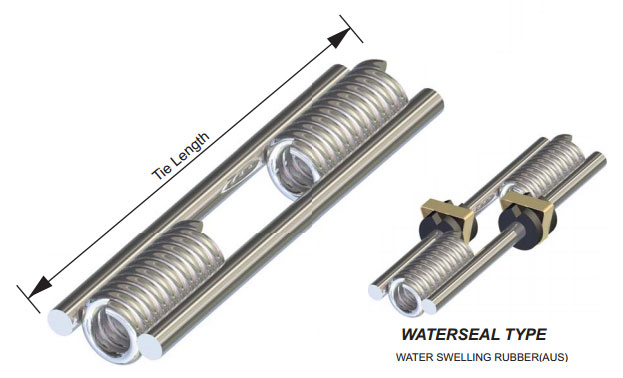

OCM Full Strut Coil Ties are one of the most economical and versatile form tie systems available. They are commonly used with self cleaning Coil Rod or Coil Bolts.


  • Economical and versatile form tie system
  • Can be provided with different capacities and almost any length
  • Can be provided as plain or mechanically galvanized
  • Coil Thread is self cleaning and ideal for dirty jobsites or use in concrete formwork
OCM Part No. Tie Length Box Qty Weight / pcs lbs Safe Working Load lbs
CT5004SP-F 4 100 0.32 4,500 lbs.
CT5006SP-F 6 100 0.32 4,500 lbs.
CT5008SP-F 8 100 0.32 4,500 lbs.
CT50010SP-F 10 100 0.36 4,500 lbs.
CT50012SP-F 12 100 0.42 4,500 lbs.
CT50014SP-F 14 100 0.466 4,500 lbs.
CT50016SP-F 16 100 0.512 4,500 lbs.
CT50018SP-F 18 100 0.558 4,500 lbs.
CT50020SP-F 20 100 0.604 4,500 lbs.
CT50024SP-F 24 100 0.696 4,500 lbs.
CT50030SP-F 30 100 0.834 4,500 lbs.
CT50036SP-F 36 100 1 4,500 lbs.
CT50042SP-F 42 100 1.1 4,500 lbs.
Comments: **1/2" Heavy Duty (6,750 SWL) available upon request - 4 Strut Available. **Additional lengths available upon request. **Waterseal available upon request. -SWL provides a safety factor of apporoximately 2 to 1.
