BH24 45 Degree Weld-On Half Hanger

Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

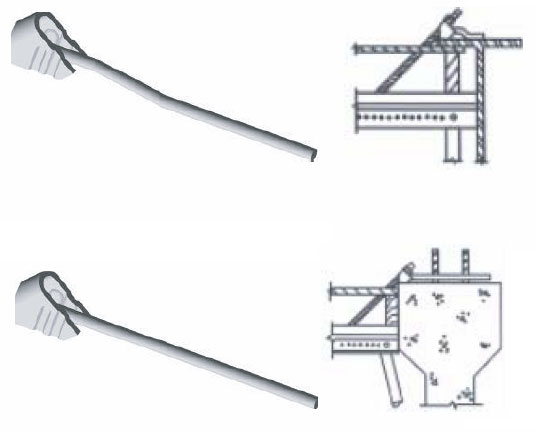

OCM BH24 45 Degree Weld-On Half Hangers are fabricated with a 1/2" diameter 45 degree End Clip and is available in 2 styles and 2 different lengths. The 1ACB type is bent and intended to be welded to the exterior beam and in turn support the fascia formwork. The 1ACS type is straight and is normally welded to the stirrups of a concrete beam.


  • Heavy Duty for 6,000 SWL is available upon request
  • SWL provides a Safety Factor of approximately 2:1
  • Availble in plain or galvanized
  • Available in Bent for welding to beam and stright for welding to stirrups of beam
  • WARNING: Welding of any hanger should be done by a certified welder
OCM Part No. Length Style Safe Working Load lbs
BH24-1ACB 12" Bent 3,500
BH24-1ACB-6 6" Bent 3,500
BH24-1ACS 12" Straight 3,500
BH24-1ACS-6 6" Straight 3,500
BH24-4AC 12" Straight 6,000
BH24-4AS 6" Straight 6,000

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
