BH60 Type #1 Pres - Steel Hanger

Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

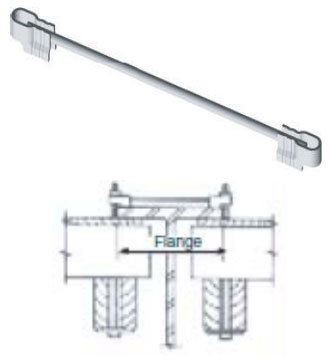

OCM BH60 Type #1 (90-90) Pres- Steel Hanger consists of two 1/2" diameter 90 degree End Clips that are welded to a single wore strut. This hanger permits installation and adjustment from atop the deck simply by turning the coil nuts. It has a nominal 3/8" haunch relief, and is designed to allow 1/8" maximum clearance between the edge of the beam and the supporting 1/2" diameter coil bolts.


  • SWL provides a Safety Factor of approximately 2:1
  • Please specify flange width and finish (Plain or HDG) when ordering
  • Can be adjusted from atop the deck
  • WARNING: Hangers must be equally loaded on both sides
OCM Part No. Diameter Safe Working Load lbs
BH60-1 1/2" 3,500

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.

OCM, Inc.

1120 Peterson Road, Grayslake, IL 60030
Toll Free: 866-457-5710 • Phone: 847-462-4258 • FAX: 847-462-4259
