Description

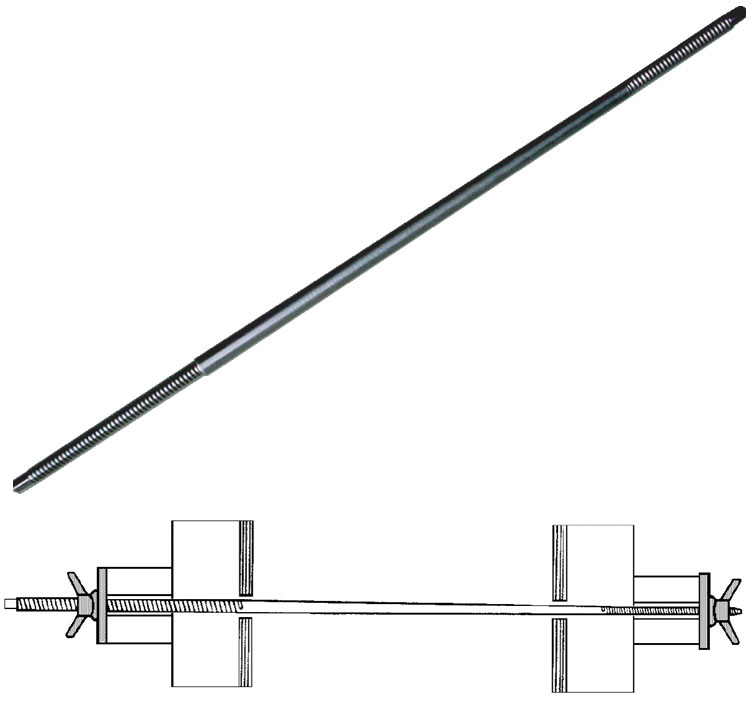

OCM INC. Taper Ties are used to connect gang modular forms and are a 100% reusable tie, and can be supplied with Coil Thread or Euro Thread as required. OCM Inc. Taper Ties are manufactured with a square end so they can be turned with a wrench and a protruding nose to protect the thread during use and installation. Safe Working load is based on a Safety Factor of 2:1.
INSTALLATION INSTRUCTIONS
1. Thread large wing nut and slide flat washer on to taper tie
2. Install taper tie into the formwork when both panels are set
3. After concrete is poured and gains strength, remove small wing nut and flat washer
4. Hit taper tie on small end and remove it
5. Coating the taper tie with waterproof grease will facilitate taper tie removal
Features
- Completely reusable.
| OCM Part No. | Large End of Tie | Small End of Tie | Standard Tie Length |
Tapered Body Diameter |
Safe Working Load lbs |
||
|---|---|---|---|---|---|---|---|
| Coil Thread Diameter |
Length of Thread |
Coil Thread Diameter |
Length of Thread |
||||
| 7550TT42P | 3/4" | 10" | 1/2" | 6" | 42" | .750" to .670" | 7,500 |
| 7550TT36P | 3/4" | 10" | 1/2" | 6" | 36" | .670" to .500" | 7,500 |
| 7550TT48P | 3/4" | 10" | 1/2" | 6" | 48" | .670" to .500" | 7,500 |
| 75100TT30P | 1" | 10" | 3/4" | 6" | 30" | .884" to .750" | 18,000 |
| 75100TT48P | 1" | 10" | 3/4" | 6" | 48" | .884" to .750" | 18,000 |
| 75100TT54P | 1" | 10" | 3/4" | 6" | 54" | .884" to .750" | 18,000 |
| 75100TT60P | 1" | 10" | 3/4" | 6" | 60" | .884" to .750" | 18,000 |
| 100125TT36P | 1-1/4" | 10" | 1" | 6" | 36" | .884" to .750" | 34,000 |
| 100125TT42P | 1-1/4" | 10" | 1" | 6" | 42" | 1.113" to 1.00" | 34,000 |
| 100125TT48P | 1-1/4" | 10" | 1" | 6" | 48" | 1.113" to 1.00" | 34,000 |
| 100125TT54P | 1-1/4" | 10" | 1" | 6" | 54" | 1.113" to 1.00" | 34,000 |
| 100125TT66P | 1-1/4" | 10" | 1" | 6" | 66" | 1.113" to 1.00" | 34,000 |
| 100125TT72P | 1-1/4" | 10" | 1" | 6" | 72" | 1.113" to 1.00" | 34,000 |
| 125100TT45P | 1-1/4" | 10" | 1" | 6" | 45" | 1.113" to 1.00" | 34,000 |
Comments: SWL provides a safety factor of approximately 2 to 1. *Additional lengths available upon request. Euro Thread Taper Ties available upon request.
